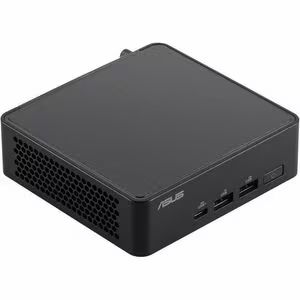

Asus NUC 14 Pro NUC14RVHU7 Barebone System - Mini PC - Intel Core Ultra 7 - Intel Chip - 96 GB DDR5 SDRAM DDR5-5600/PC5-44800 Maximum RAM Support - 2 Total Memory Slots - NVMe, Serial ATA Controller - Intel Arc GPU Graphic(s) - IEEE 802.11ax - Bluetooth 5.3 - Network (RJ-45) - 2 M.2 Interface(s) - 1 SATA Interface(s) - Processor Support (Core Ultra 7, Core Ultra 5, Core 3) - 2.5 Gigabit Ethernet - Windows 11, Linux Supported Operating System - 120 W
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and userexperience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PCexperiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving techlandscape.
Features- Performance
- : Delivers best-in-class performance among comparable mini-PC offerings
- Manageability
- : Most comprehensive mini-PC with Intel vPro<sup></sup>Enterprise for exceptional security, manageability, and stability
- AI Ready
- : Harnesses the prowess of Intel<sup></sup>Core Ultra processors' three AI engines for high throughput, low power, and fast response
- Wi-Fi Sensing
- : Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
- Wireless Connectivity
- : Delivers seamless connectivity for certified Bluetooth<sup></sup>dongle-free experiences
- Customizable
- : Designed for toolless chassis access making upgrades easier, safer, and faster
Chipset
| Chipset Manufacturer | Intel |
I/O Expansions
| Number of M.2 Interfaces | 2 |
Power Description
| Maximum Power Supply Wattage | 120 W |
Controllers
| Controller Type | Serial ATA |
| NVMe |
Operating System
| Operating System Supported | Windows 11 |
| Linux |
Miscellaneous
| Package Contents | - NUC 14 Pro NUC14RVHU7 Barebone System
- Power Adapter
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Display &Graphics
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Arc GPU |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
Memory
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Number of Total Memory Slots | 2 |
Storage
| Supported Storage Drive Interfaces | Serial ATA |
| PCI Express NVMe 4.0 |
| Supported Storage Drive Types | SSD |
| HDD |
Physical Characteristics
| Weight (Approximate) | 570 g |
| Form Factor | Mini PC |
| Height | 41 mm |
| Width | 144 mm |
| Depth | 112 mm |
| Product Color | Black |
| Color Family | Black |
Network &Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.3 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
Processor
| Processor Supported | Core 3 |
| Core Ultra 5 |
| Core Ultra 7 |
| Processor Type | Core Ultra 7 |
| Processor Manufacturer | Intel |
General Information
| Product Type | Barebone System |
| Manufacturer Part Number | RNUC14RVHU700004I |
| Manufacturer Website Address | https://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | NUC14RVHU7 |
| Product Name | NUC 14 Pro NUC14RVHU7 Barebone System |
| Product Line | NUC 14 Pro |
| Brand Name | Asus |
Interfaces/Ports
| Number of SATA Interfaces | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 5 |
| USB Type-C Detail | 1 x USB 3.2 Gen2x2 Type C (20Gbps) |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of Thunderbolt 4 Ports | 2 |
